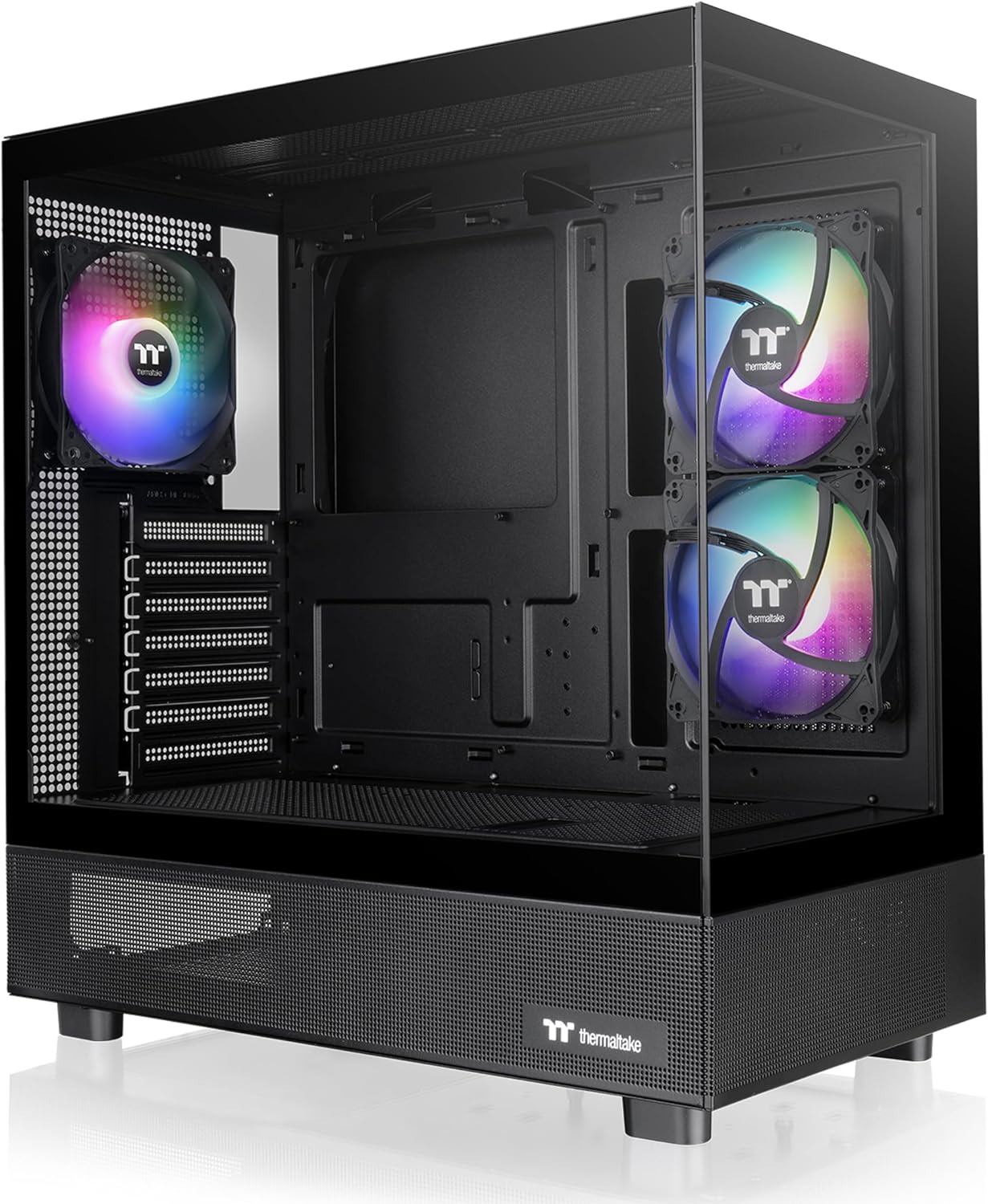

Thermaltake View 270 Plus TG ARGB ATX Case with Window, No Power Supply, USB Type-A & C, 3xARGB Fans
P/NCA-1Y7-00M1WN-01
SERIESView
CASE TYPEMid Tower
DIMENSIONS456 x 230 x 454 mm
(18 x 9.1 x 17.9 inch)
WEIGHT6.35 kg / 14 lbs.
SIDE PANELTempered Glass x 2COLORBlackMATERIALSPCCCOOLING SYSTEMRight(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1DRIVE BAYS2 x 3.5”, 1 x 2.5” or 2 x 2.5”EXPANSION SLOTS7MOTHERBOARD6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)I/O PORTUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSUStandard PS2 PSU (optional)
FAN SUPPORTTop:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm, 1 x 140mm
Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mmRADIATOR SUPPORTTop:
1 x 360mm, 1 x 240mm, 1 x 120mm
Rear:
1 x 120mmCLEARANCECPU cooler max height: 180mm
VGA max length: 420mm
PSU max length: 220mm
